Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings

Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings
Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings

Large Image :  Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings

Product Details:
Place of Origin: Zhejiang, China
Brand Name: OASIS or OEM
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE film
Delivery Time: 15 days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 200000 Sqm/Month
Detailed Product Description
Product Name: Opal White 6mm Polycarbonate Roofing Sheets With Twin Wall Structure Size: 6mm * 2.1 * 11.8m
Color: Opal White Suitable Temperature: -40℃ — +120℃
Structure: Twin Wall Raw Material: / Makrolon
High Light:

polycarbonate twin wall roofing sheets

,

uv roof sheeting

Opal White 6mm Polycarbonate Roofing Sheets With Twin Wall Structure



Polycarbonate twin wall roofing sheet provides outstanding flexibility in design and advanced heat reflecting and light transmitting performance. One side of the sheet has a co-extruded UV barrier which provides protection from 99.9% of harmful UV radiation, giving superior resistance to outdoor weathering. The flat appearance of the sheet means it is aesthetically pleasing.



Polycarbonate Roofing Sheet Specification



Thickness(mm) Structure

Weight

(g/sqm)

Min. Bend Radius

(mm)

K value

(W/㎡K)

4





2-layer

850 700 4.1
5 1000 875 3.8
6 1300 1050 3.6
8 1500 1400 3.3
10 1700 1750 3
6





3-layer



1400 1050 3.4
8 1600 1400 3.2
10 1800 1750 2.7
12 2100 2100 2.6
14 2400 2450 2.4
16 2700 2800 2.3



Polycarbonate Roofing Sheet Properties

1. Mechanical Properties

   * Impact strength: Polycarbonate twin-wall sheet has outstanding impact performance over a wide temperature, -40℃ — +120℃, and also after prolonged ourdoor exposure.

   * Hail resistance: As a roofing glazing material, polycarbonate sheet is subject to extremes of weather, storms, hail-stones, wind, snowfalls and ice formation. Under these conditions, the product is virtually unbreakable and is able to withstand the subsequent temperature change to sunny conditions without breaking or bucking.



2. Physical Properties

   * Light tramission:



Thickness(mm)



Color

4 5 6 8 10
Light transimission



Clear



80% 78% 76% 74% 72%



Lake Blue



56% 54% 51% 49% 48%



Green



55% 52% 51% 48% 46%



Grass green



54% 52% 50% 46% 44%



Brown



34% 32% 30% 26% 23%



Blue



33% 31% 28% 25% 20%



Opal



27% 25% 22% 18% 15%



Advertising white



16% 14% 12% 9% 8%



Polycarbonate Roofing Sheet Storage

1. Polycarbonate sheet shoube be stored and protected against atmospheric influence like sun, rain, etc.



2. Same length of polycarbonate sheet should be stacked together horizontally or, if different lengths, graded with the longest sheet at the bottom of the stack in order to avoid unsupported overhangs.



3. The stacks should be supported om timber bearers and should not be placed where they can be walked on or driven into.



Polycarbonate Roofing Sheet Packing

As with all glazing materials, care should be exercised when handling and transporting polycarbonate sheet in order to prevent scratches and damage to sheet edges. Each sheet is packaged as follows to minimise the risk of these problems:

* The top face is covered with printed ing

* The bottom face use opal film or neutral film

* The edges of the sheets have colored tape on them

* The sheet should be kept in their packaging until immediately prior to installation



Polycarbonate Roofing Sheet Application

1. Building skylights; such as gymnasium, workshop, storehouse etc.
2. Agriculture greenhouse
3. Natatorium coverings
4. Walkway; Carport
5. Indoor partition; Folding screen
6. Furniture; Bathroom

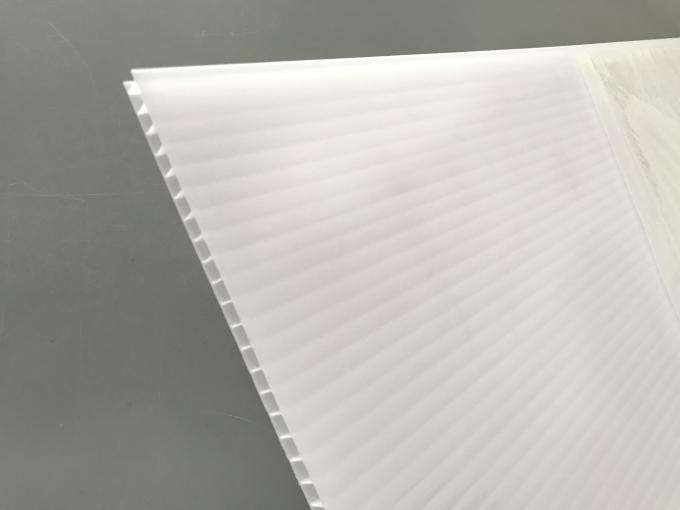

Polycarbonate Roofing Sheet Opal White Color Showing



Professional Opal White Polycarbonate Roofing Sheets For Natatorium Coverings 0
